Infinite networking potential. Zero limitations.
Biamp's revolutionary Audia Digital Audio Platform seamlessly integrates powerful hardware and intelligent software for unheard of design and networking potential.
In fact, Biamp is one of the first manufacturers to make use of CobraNet® by integrating it into Audia DSPs, pioneering its use in high profile installations.
A single Audia unit can provide the power of an entire rack of processors at your fingertips. Imagine what you can do with multiple Audia units, configured and networked to conquer the most challenging environments.
Sona™, Biamp’s new innovation in acoustic echo cancellation technology delivers full, natural sound in conferencing environments and is available on the AEC-2HD card for AudiaFLEX.

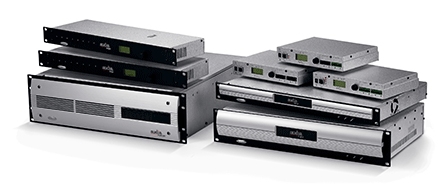

Explore the ever-expanding power of Audia.
The next generation in Audia's Digital Audio Platform, AudiaFLEX gives you unprecedented control of your system with the ultimate flexibility in design. Choose any configuration of input (IP-2) and output (OP-2e) pairs to create the system you need without compromises. Multi-Channel audio can be seamlessly distributed among multiple units via CobraNet®, using economical Cat-5 cable. Control the processing power of the entire network over Ethernet, or via Crestron®, AMX®, or other popular controllers. Each AudiaFLEX can provide up to 24 channels of I/O, or expand your options even further with new AudiaEXPI and AudiaEXPO.
AudiaFLEX is continuously being enhanced through hardware, firmware and software upgrades such as CobraNet Latency (as low as 1.33 mS), Feedback Suppression, expanded Transfer function and other improvements. AEC-2HD Input Cards are designed and built using Biamp's proprietary Sona™ AEC technology with the industry's longest tail length to deliver increased frequency response, improved audio quality, and more natural sound during full-duplex transmission of speech.
FEATURES
- Up to 24 inputs/outputs, any combination by pairs, with or without CobraNet
- Up to 24 inputs/outputs, any combination by pairs, with or without CobraNet
- Control via:
- PC/laptop
- Remote control panels for level, presets, etc.
- Third-party control via RS-232
- Built-in diagnostic tools
- Remote function control via Ethernet
- Ability to select, view, and calibrate:
- Mixers: Standard, automatic, matrix, combiners
- Equalizers: Graphic, parametric
- Filters: HPF, LPF, high shelf, low shelf, all-pass
- Crossovers: 2-Way, 3-Way and 4-way
- Dynamics: Leveler, comp/limiter, ducker, ANC
- Routers: 2x4 ~ 40x40
- Delays: 0 ~ 2000mS
- Remote controls
- Meters: Signal present, peak, RMS
- Generators: Tone, pink-noise, white-noise
- Diagnostics: Transfer function
Networked Paging Station
Designed exclusively for use with AudiaFLEX and AudiaFUSION systems, the Networked Paging Station-1 is a microphone console engineered to carry audio, control and power all through a single cable. Featuring an innovative user interface, the NPS-1 allows users to quickly switch between pre-programmed paging groups and zones, making it perfect for stadiums, convention centers, shopping malls, hospitals and similar facilities. This CE-marked and RoHS-compliant microphone integrates with AudiaFLEX and AudiaFUSION networks via CobraNet® and can be used with in multiple station/multiple device systems.
Additional benefits include 16 priorities with override and lockout functions, 32 programmable button operations, 16 simultaneous pages and the choice of Power over Ethernet (PoE) or external power supply.
AudiaFLEX Card Options
VoIP-2 Dual-Channel Voice over Internet Protocol Cards
VoIP-2 Cards for AudiaFLEX enable conferencing over VoIP directly from AudiaFLEX, with two channels of VoIP interface per card. VoIP-2 cards allow AudiaFLEX to connect directly to IP-based phone systems and eliminate the need for VoIP adapters. Used in conjunction with AEC-2HD Dual-Channel Wideband Acoustic Echo Cancellation Input Cards and TI-2 Dual-Channel Telephone Interface Cards, the VoIP-2 Card makes AudiaFLEX the most powerful, flexible and affordable telephone conferencing product available. Combined with the TI-2 Card and/or CODEC, the VoIP-2 Card makes it possible to create redundancies within a conferencing system for multi-point conferences and/or back-up to VoIP lines. Up to six VoIP-2 cards can be installed into a single AudiaFLEX unit.
AEC-2HD Dual-Channel Wide-Band Acoustic Echo Cancellation Input Cards
Audia has always been ideal for audio and video conferencing. Now, AEC-2HD Input Cards allow each AudiaFLEX installation to have precisely the acoustic echo cancellation needed. With the ability to select AEC on individual input channels, your network conferencing can enjoy the power and flexibility of Audia. Each AEC-2HD Input Card provides two channels of acoustic echo cancellation and background noise reduction, as part of AudiaFLEX hardware. AEC-2HD Input Cards are designed and built using Biamp's proprietary Sona™ AEC technology for increased frequency response, improved audio quality, and more natural sound during full-duplex transmission of speech. Additional benefits include greater tolerance for differing signal levels, enhanced intelligibility and fast, easy setup.
PA-2 Dual-Channel Power Amplifier Cards
PA-2 amplifier cards allow AudiaFLEX to directly power 4, 6, or 8 ohm speakers. The output power is software configurable from 5 to 30 watts dual-channel and from 10 to 60 watts mono-bridged. An upgraded AudiaFLEX power supply provides a total of 120 watts of power, for up to twelve PA-2 cards.
IP-2 Dual-Channel Mic/Line Input Cards
IP-2 input cards allow each AudiaFLEX installation to have the quantity and type of inputs required. Each IP-2 Card provides two channels of mic/line input, as part of AudiaFLEX hardware. Inputs are balanced, and are provided on plug-in barrier strip connectors. Software control of individual inputs includes: gain w/ peak indication; +48V phantom power; mute; level; and signal invert.
TI-2 Dual-Channel Telephone Interface Cards
TI-2 dual-channel Telephone Interface Cards allow AudiaFLEX to connect directly to standard analog lines. Being more than just a normal 'hybrid', each channel of the TI-2 includes line-echo cancellation, noise suppression, caller ID decoding, ring detection/validation, DTMF tone dialing, DTMF decoding, and call progress tone decoding.
Used in conjunction with AEC-2HD Acoustic Echo Cancellation Cards, the TI-2 makes AudiaFLEX the most powerful, flexible and affordable telephone conferencing product available. The TI-2 also allows AudiaFLEX to respond to DTMF control commands such as preset recalls from any telephone system. The TI-2 can be used for audio input-only applications such as paging access; or for audio output-only applications such as broadcast feeds and remote system monitoring. Up to twelve TI-2 Telephone Interface Cards can be installed into a single AudiaFLEX unit.
OP-2e Dual-Channel Mic/Line Output Cards
OP-2e output cards allow each AudiaFLEX installation to have the quantity and type of outputs required. Each OP-2e Card provides two channels of mic/line output, as part of AudiaFLEX hardware. Outputs are balanced, and are provided on plug-in barrier strip connectors. Software control of individual outputs includes: mute; level; signal invert; and full-scale output reference.

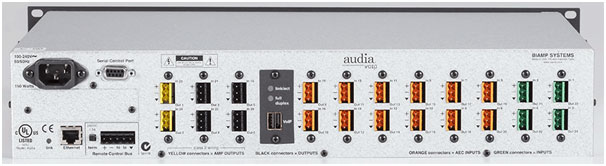

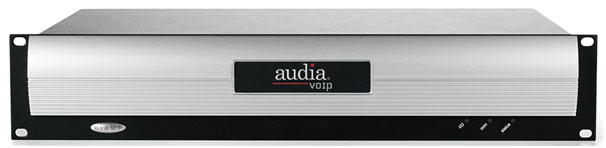

With its unique combination of scalability, reliability and sound quality, Audia quickly won accolades, as well as customers. Introducing AudiaVOIP, the all-in-one preconfigured VoIP teleconferencing solution that’s designed to be easy to set up and use. AudiaVOIP is a fixed-configuration processor with a preloaded DAP file that saves you time on installation. A dedicated daVinci™ software control panel is also available to simplify the integration of control for the end user. It’s that easy.
DISTANCE CONFERENCING BY BIAMP
You know that annoying echo you hear during teleconferences? It’s someone’s voice coming out of a speaker, feeding directly back into a microphone and returning to the source. AudiaVOIP features our award-winning Sona™ AEC technology that totally eliminates this acoustic echo.
AudiaVOIP comes preconfigured with 12 AEC inputs, 4 standard inputs, 4 line outputs, 2 amplified outputs and 2 VoIP lines.
With AEC, built-in VoIP and amplified outputs, think of AudiaVOIP as your preconfigured, cost-effective VoIP-based conferencing solution from the company who knows VoIP like no other.
FEATURES- Sona Acoustic Echo Cancellation (AEC)
- Control via:
- PC/laptop
- Remote control panels for level, presets, etc.
- Third-party control via RS-232
- Built-in diagnostic tools
- Remote function control via Ethernet
- CE marked, UL listed & RoHS compliant
- Covered by Biamp Systems’ 5-year warranty
- Ability to select, view, and calibrate:
- Mixers: Standard, automatic, matrix, combiners
- Equalizers: Graphic, parametric
- Filters: HPF, LPF, high shelf, low shelf, all-pass
- Crossovers: 2-Way, 3-Way and 4-Way
- Dynamics: Leveler, comp/limiter, ducker, ANC
- Routers: 2x4 ~ 40x40
- Delays: 0 ~ 2000ms
- Remote controls
- Meters: Signal present, peak, RMS
- Generators: Tone, pink-noise, white-noise
- Diagnostics: Transfer function
AudiaVOIP Cards
(2) IP-2 Dual-Channel Mic/Line Input Cards
IP-2 input cards allow each AudiaVOIP installation to have the quantity and type of inputs required. Each IP-2 Card provides two channels of mic/line input, as part of AudiaVOIP hardware. Inputs are balanced, and are provided on plug-in barrier strip connectors. Software control of individual inputs includes: gain w/ peak indication; +48V phantom power; mute; level; and signal invert.
(6) AEC-2HD Dual-Channel Wide-Band Acoustic Echo Cancellation Input Cards
Audia has always been ideal for audio and video conferencing. Now, AEC-2HD Input Cards allow each AudiaVOIP installation to have precisely the acoustic echo cancellation needed. With the ability to select AEC on individual input channels, your network conferencing can enjoy the power and flexibility of Audia. Each AEC-2HD Input Card provides two channels of acoustic echo cancellation and background noise reduction, as part of AudiaVOIP hardware. AEC-2HD Input Cards are designed and built using Biamp's proprietary Sona™ AEC technology for increased frequency response, improved audio quality, and more natural sound during full-duplex transmission of speech. Additional benefits include greater tolerance for differing signal levels, enhanced intelligibility and fast, easy setup.
(2) OP-2e Dual-Channel Mic/Line Output Cards
OP-2e output cards allow each AudiaVOIP installation to have the quantity and type of outputs required. Each OP-2e Card provides two channels of mic/line output, as part of AudiaVOIP hardware. Outputs are balanced, and are provided on plug-in barrier strip connectors. Software control of individual outputs includes: mute; level; signal invert; and full-scale output reference.
(1) PA-2 Dual-Channel Power Amplifier Cards
PA-2 amplifier cards allow AudiaVOIP to directly power 4, 6, or 8 ohm speakers. The output power is software configurable from 5 to 30 watts dual-channel and from 10 to 60 watts mono-bridged.
(1) VoIP-2 Dual-Channel Voice Over Internet Protocol Card VoIP-2 Cards for AudiaVOIP enable conferencing over VoIP directly from AudiaVOIP, with two channels of VoIP interface per card. VoIP-2 cards allow AudiaVOIP to connect directly to IP-based phone systems and eliminate the need for VoIP adapters. Used in conjunction with AEC-2HD Dual-Channel Wideband Acoustic Echo Cancellation Input Cards, the VoIP-2 Card makes AudiaVOIP the most powerful, flexible and affordable telephone conferencing product available.
An innovative product that Biamp System has to create a completely new category to describe it: Networked Amplified Processor. A full-featured DSP with enough power to drive a system of its own, AudiaFUSION is a leap forward in audio technology. It allows you to configure systems that are decentralized, placing components close to speakers for reduced labor and material costs. And when you install AudiaFUSION in a system together with AudiaFLEX, processing resources are shared, making the entire system more efficient. The potential to save money and maximize profit is, well, revolutionary.
FEATURES- Modular based design
- Amplification modules have software configurable power levels/load options
- Maximum of 2400 Watts of power in 3 rack spaces
- TCP/IP Network controllable
- LED Indication:
- Signal present
- Peak present
- Clip present
- Heat sink temperature fault
- Amplifier failure
- Fan stuck-rotor
- Internal amplifier module failover mode
- Entire device failover mode
- Software Monitoring Features:
- o Peak present
- o Heatsink temperature value, warning and fault
- o Short circuit on output
- o Amplifier failure
- o Impedance min/max threshold warning
- o Excessive clipping
- o Fan stuck-rotor
- Seamless integration with CobraNet-enabled Audia systems
- CobraNet Interface (16 channels in/16 channels out)
- CobraNet latency 5-1/3, 2-2/3 or 1-1/3 ms, software configurable
- Dual CobraNet ports for redundancy
- Configurable with Audia software
- Controllable with RED-1, daVinci or third party control systems/li>
- Selectable 115/230 volt operation
Networked Paging Station
Designed exclusively for use with AudiaFLEX and AudiaFUSION systems, the Networked Paging Station-1 is a microphone console engineered to carry audio, control and power all through a single cable. Featuring an innovative user interface, the NPS-1 allows users to quickly switch between pre-programmed paging groups and zones, making it perfect for stadiums, convention centers, shopping malls, hospitals and similar facilities. This CE-marked and RoHS-compliant microphone integrates with AudiaFLEX and AudiaFUSION networks via CobraNet® and can be used with in multiple station/multiple device systems. Additional benefits include 16 priorities with override and lockout functions, 32 programmable button operations, 16 simultaneous pages and the choice of Power over Ethernet (PoE) or external power supply.
AudiaFUSION Card Options
AM-600 Amplifier Module Card The AM-600 card offers software configurable power levels/load options with 8 amplification modules per frame with 100 to 600 Watts per module (maximum of 2400 Watts per chassis) and 70V or 100V with direct drive capability, or low-impedance (4 or 8 ohm) operation.
A convenient and cost-effective way to expand the power of an Audia system even further, each AudiaEXPI and AudiaEXPO offers eight inputs (AudiaEXPI) or eight outputs (AudiaEXPO), without the need to purchase and install additional Audia units. Using Audia's highly evolved CobraNet® features, now you can create systems you never even dreamed were possible.
AudiaEXPI FEATURES- 8 mic/line analog inputs on plug-in barrier strips
- front panel input level controls and peak indicators
- 24-bit A/D converters with 48kHz sample rate
- 8 channels of digital audio output via CobraNet
- rotary encoder with LCD for programming/setup
- Included as block in AUDIA system design software.
- may be used with any CobraNet compliant system
- CE marked and UL listed power source
- 8 channels of digital audio input via CobraNet
- 24-bit D/A converters with 48kHz sample rate
- 8 line-level analog outputs on plug-in barrier strips
- front panel adjustable analog output level controls
- rotary encoder with LCD for programming/setup
- included as block in AUDIA system design software
- may be used with any CobraNet compliant system
- CE marked and UL listed power source
New AudiaEXPI-4 or AudiaEXPO-4 Mini-Expanders stretch dollars and Audia systems even further by adding either four inputs or outputs exactly where they're needed. AudiaEXPI/O-2 delivers a combination of 2 inputs and 2 outputs in one unit. The option to use Power over Ethernet (PoE) or local power makes them even more versatile. Making CobraNet® access more affordable, Mini-Expanders for Audia expand system boundaries for more scalable, flexible systems anywhere.
AudiaEXPI-4 FEATURES- 4 mic/line analog audio inputs
- 4 channels of digital audio output via CobraNet
- Half-rack-width format
- May be used to add inputs to a centralized Audia system or in remote locations
- Represented as a block in Audia software for easy inclusion into any system design
- Power-over Ethernet (PoE) capable
- May be used with any CobraNet compliant system or device
- Output expander with 4 channels of digital audio input via CobraNet
- 4 mic/line-level analog audio outputs
- Half-rack-width format
- May be used to add outputs to a centralized Audia system or in remote locations
- Represented as a block in Audia software for easy inclusion into any system design
- Power-over Ethernet (PoE) capable
- May be used with any CobraNet compliant system or device
- 2 mic/line analog audio inputs
- 2 mic/line-level analog audio outputs
- 2 channels of digital audio output via CobraNet
- 2 channels of digital audio input via CobraNet
- Half-rack-width format
- May be used to add inputs and outputs to a centralized Audia system or in remote locations
- Supported using explicit CobraNet I/O blocks in Audia system design software
- Power-over Ethernet (PoE) capable
- May be used with any CobraNet compliant system or device
