LS Inverter Type iC5 ( 0,4 ~ 2,2 kW 1 Phase 200 ~ 230 Volts )
High torque micro VFD
Small capacity and high performance LS inverter iC5 series.
iC5 provides satisfies various customer needs with Modbus, PID control, Sensorless vector control, Auto Tuning, etc
Features
- Sensorless vector control
The iC5 adopts sensorless vector control algorithm, and it improves not only the torque control characteristics, but the speed controlability in an uncertain condition caused by the load variation as well.
- Auto Tuning
The auto tuning algorithm in the iC5 sets the motor factors automatically that brings the traditional commissioning difficulties mainly in low speed by the load variation and the low torque generation to a settlement.
- Highly efficient DSP chip
The iC5 adopts highly efficient DSP(Digital Signal Processing) chip to improve processing speed, flexibility, stability and etc.
- PNP, NPN Dual Control Signal
The iC5 provides PNP and NPN signals for outside controllers.
It works with 24Vdc regardless of the type of PLC or control signals.
- Communication interface, Modbus-RTU
The iC5 provides the most popular communication interface, ModBus-RTU for remote control by PLC
or other devices.
- PID Control
PID process control is used in iC5 to make speed corrections quickly with a minimal amount of overshoot
and oscillation for the control of flow, temperature, pressure and etc.

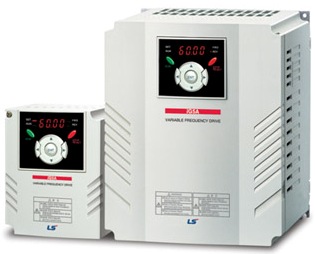

LS Inverter Type iG5A ( 0,4 ~ 7,5 kW 3 Phase 200 ~ 230 Volts ) or ( 0,4 ~ 7,5 kW 3 Phase 380 ~ 480 Volts )
Powerful & compact sensorless vector control VFD
LS Starvert iG5A is very competitive in its price and its functional strength compared to iG5. User-friendly interface, extended inverter ranges up to 7.5kW, superb torque competence and small size of iG5A provides an optimized user environment.
Features
Selectable V/f, sensorless vector control
Motor parameter Auto-tuning
Powerful torque at overall speed range
0.1 ~ 400Hz frequency output
-15% ~ +10% input voltage margin
Fault history: Last 5 faults
0~10Vdc / -10 ~ +10Vdc analog input
IP20 enclosure, UL Type 1 (Option)
Selectable manual/automatic torque boost
Selectable PNP/NPN input signal
2nd motor control and parameter setting
Built-in Dynamic braking transistor as standard
Enhanced process PID control
Built-in RS485 (LS Bus / Modbus RTU) communication
Cooling fan On/Off control & Easy change
Remote control using external keypad * RJ45 cable(Optional)
Upgraded functions:Sleep & Wake-up (Energy savings), KEB(Kinetic Energy Buffering) protection, Low leakage PWM algorism
Monitoring & commissioning PC based software tool (Drive View)
LS Inverter Type iS5 ( 0,75 ~ 55 kW [ 1 ~ 75 HP ] 3 Phase 200 ~ 230 Volts ) or ( 0,75 ~ 75 kW [ 1 ~ 100 HP ] 3 Phase 380 ~ 480 Volts )
Precise vector control standard VFD
Sensorless & sensored vector controller iS5 (0.75~75kW) keeps your
application in more stable, durable and precise condition. And iS5 maximizes
user-convenience with Auto Tuning, PID control, etc.
Features
kW/Voltage Ratings:
0.75 ~ 55kW, 3 phase, 200 ~ 230VAC
0.75 ~ 75kW, 3 phase, 380 ~ 480VAC
Selectable V/f, Sensorless vector, Sensored vector control (Optional)
Built-in process PID control
Optimum acceleration & deceleration for a maximum torque
APP parameter group for special operations;
Traverse, Multi Motor Control, DRAW
Multi-function I/O terminal:
Input: 27 functions / Output: 21 functions
Multi Motor Control (Up to 4 motors: Optional)
Motor parameter Auto-tuning
Parameter Read/Write function using a detachable LCD Keypad
8 Preset speedsl
Extension I/O boards (Optional) : Sub-A, Sub-B,l Sub-C
Communication options:
Modbus RTU, Profibus-DP, DeviceNet, RS485(LS Bus), Fnet(LS PLC link)
Built-in Dynamic braking transistor (Up to 7.5kW [10HP])
Monitoring & commissioning PC based software tool (Drive View)
|
